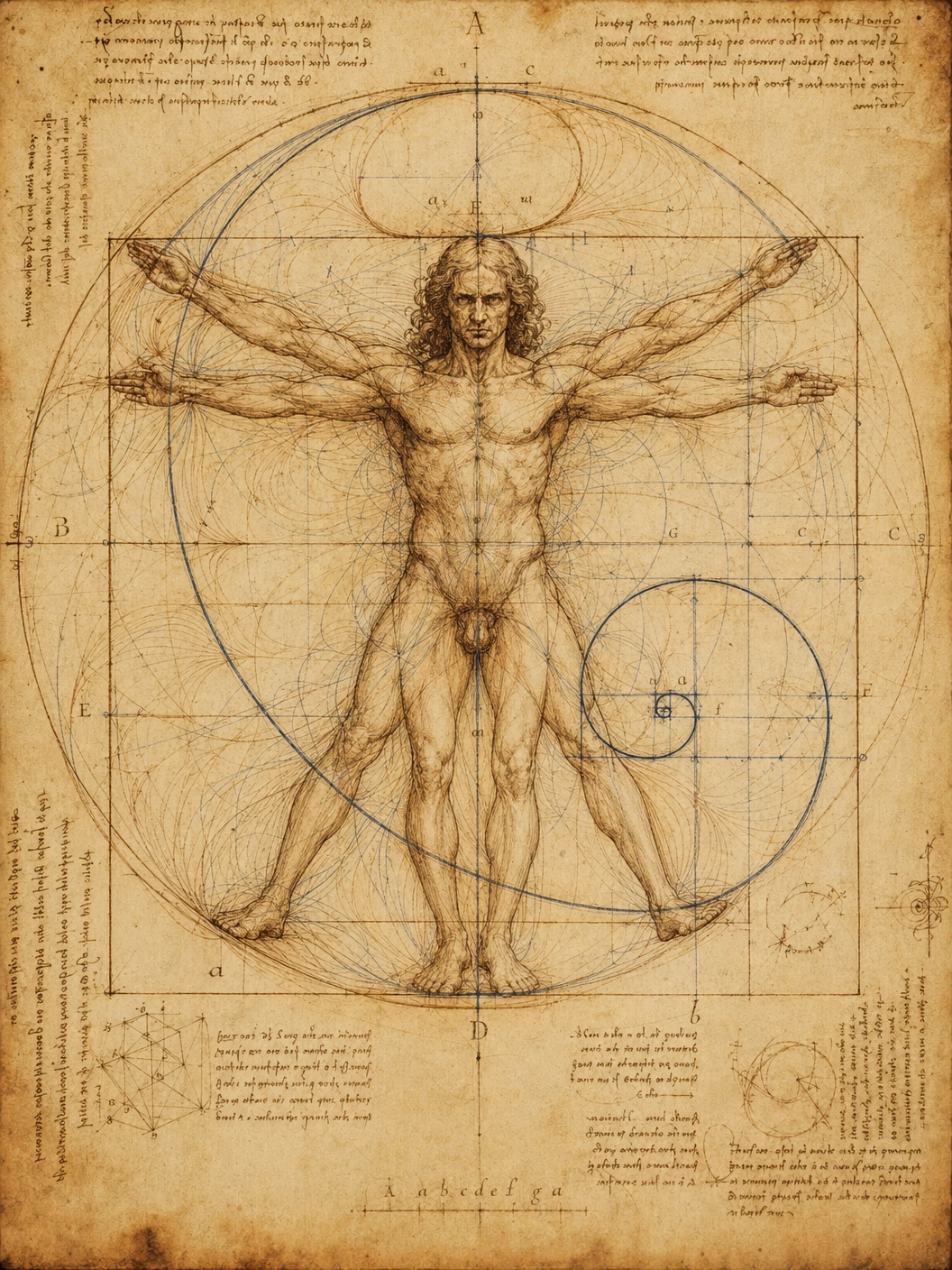

Frontispiece. Integrated geometric model of the human body, after Leonardo da Vinci (c. 1490), with spiral force vectors and transport pathways overlaid.
The Vitruvian Flow
Spiral mechanics, hydraulic transport, and structural geometry in the living body
Jeffrey D. Smith
2026
Proportional Geometry of the Human Body
Bilateral symmetry as an optimization principle
The bilateral symmetry of the human body is not merely aesthetic. It reflects an underlying optimization of force distribution and metabolic transport across the organism. The span of outstretched arms approximates total body height. The navel divides standing height at a ratio approaching 1.618 — the golden ratio, or phi (φ). The ratio of forearm to hand length converges on the same constant [1].
These proportional relationships are not coincidental. They emerge from developmental constraints governed by Hox gene expression gradients, mechanical loading during growth, and the thermodynamic efficiency of branching transport networks. Murray's Law (1926) demonstrates that vascular branching angles optimize flow with minimal energy expenditure — a geometric constraint that propagates through the entire body plan [2].
The circle inscribes the body's maximum reach envelope. The square frames its stance footprint. The logarithmic spiral — approximated by the Fibonacci sequence — traces growth trajectories from the cochlea of the inner ear to the dermatoglyphic patterns of the fingertip. These are not mystical correspondences. They are signatures of shared developmental algorithms [3].
The recurrence of φ across anatomical scales suggests a common morphogenetic constraint rather than coincidence.
References
1. Livio, M. (2002). The Golden Ratio. Broadway Books.
2. Murray, C.D. (1926). The physiological principle of minimum work. Proc Natl Acad Sci, 12(3), 207–214.
3. Thompson, D.W. (1917). On Growth and Form. Cambridge University Press.
Helical Mechanics of the Musculoskeletal System
Counter-rotating spirals as a structural motif
The limbs are not simple lever systems. They are helical structures — braided columns of muscle, tendon, and bone that wind around each other in counter-rotating spirals. Forearm pronation and supination is not a simple pivot; it is a double-helix unwinding, with the radius rotating over the ulna through approximately 150° of arc [4].
At every major joint, spiral force vectors converge at anatomical choke points — mechanical bottlenecks where rotational forces are concentrated, redirected, and amplified. The shoulder's rotator cuff, the forearm's interosseous membrane, and the ankle's retinacula all serve as force-routing structures for helical load paths [5].
This helical architecture is scale-invariant. It appears in the alpha-helix of protein secondary structure, the double helix of DNA, the spiral vasculature of the umbilical cord, and the helical fiber arrangement of cardiac myocytes. The body does not merely contain spirals — it is constructed from them at every organizational level [6].
Counter-rotation generates stability without rigidity — a principle shared by engineered rope, arterial walls, and the musculoskeletal system.

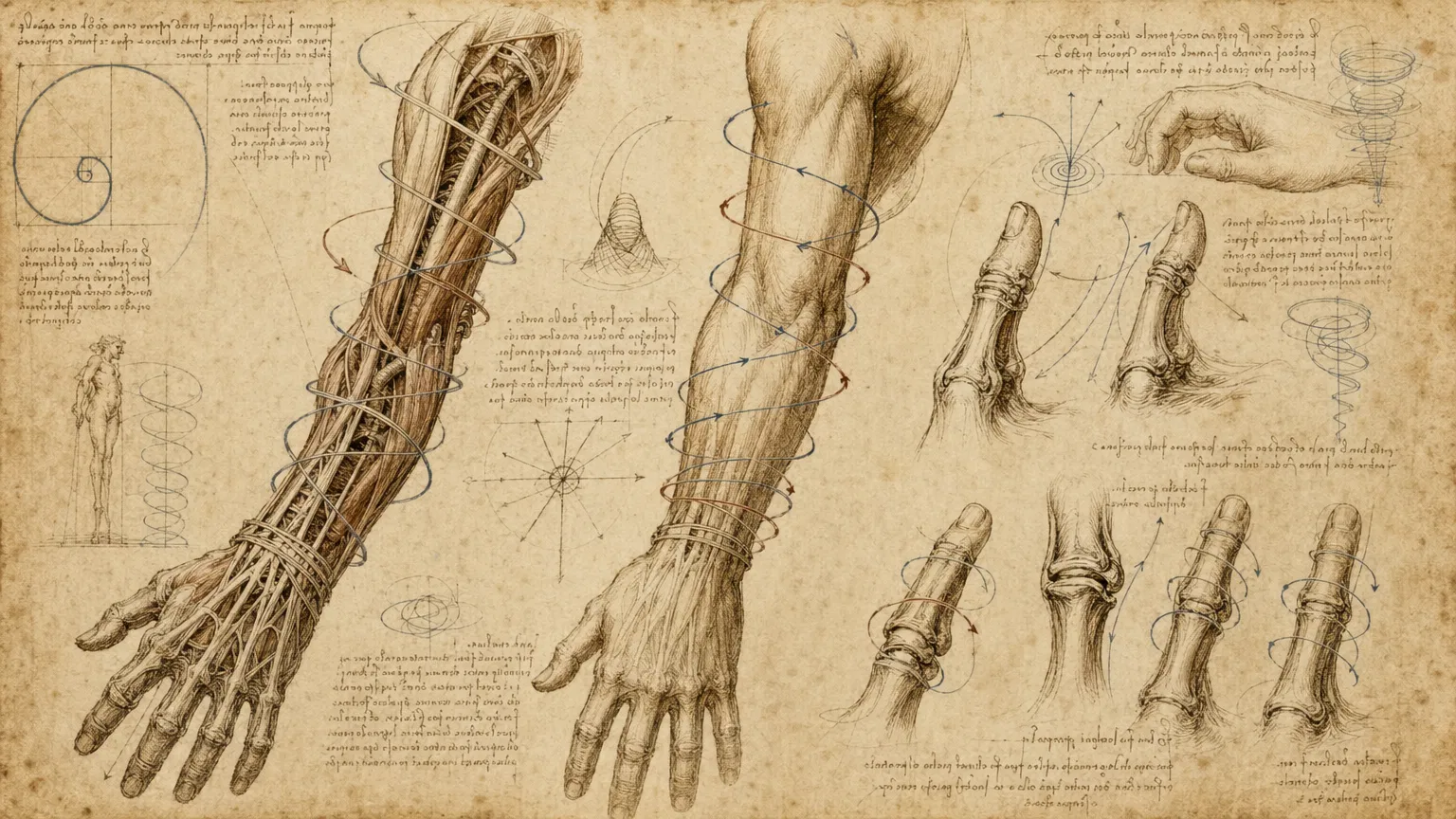

Fig. 2. Helical arrangement of forearm musculature. Pronator and supinator groups wrap in opposing spirals, creating a biological torque-coupling mechanism.
References
4. Kapandji, A.I. (2007). The Physiology of the Joints, Vol. 1. Churchill Livingstone.
5. Scarr, G. (2014). Biotensegrity: The Structural Basis of Life. Handspring Publishing.
6. Buckberg, G.D. (2002). Basic science review: the helix and the heart. J Thorac Cardiovasc Surg, 124(5), 863–883.
Hydraulic Transport and Fluid Dynamics
The body as a pressure-driven watershed

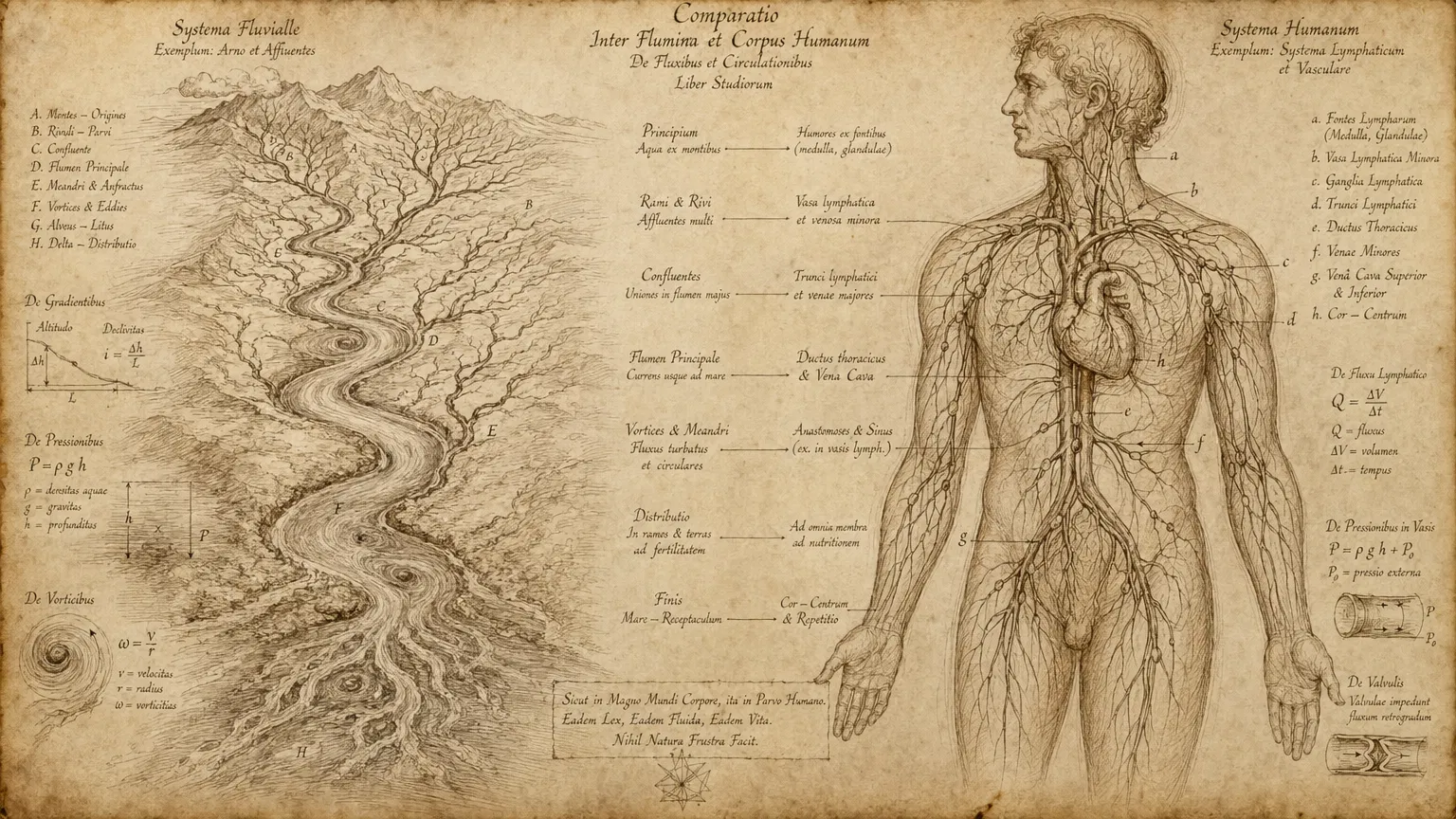

Fig. 3. Structural homology between watershed drainage patterns and the lymphatic vascular network. Both systems are governed by pressure gradients and branching optimization.
Leonardo da Vinci spent years studying the movement of water — its eddies, channels, pressure gradients, and tendency to find the path of least resistance. He drew rivers with the same observational rigor he applied to veins. The parallel he intuited is now quantifiable [7].
The lymphatic system operates as a biological watershed. Interstitial fluid collects in capillary beds — analogous to rain gathering in headwater streams — and flows through progressively larger vessels until it empties into the venous system at the subclavian veins. The architecture follows Murray's branching law: each junction optimizes the trade-off between flow resistance and metabolic cost of maintaining vessel walls [8].
Pressure gradients drive the flow. Intraluminal valves prevent retrograde movement, functioning as biological check valves. Lymph nodes serve as filtration stations where immune surveillance occurs. The system is a hydraulic network operating under the same physical laws that govern river basins, municipal water systems, and industrial fluid circuits [9].
The same branching laws that govern river deltas govern lymphatic drainage — Murray's Law applies to both.
References
7. Kemp, M. (2004). Leonardo da Vinci: Experience, Experiment, and Design. Princeton University Press.
8. Murray, C.D. (1926). The physiological principle of minimum work applied to the angle of branching of arteries. J Gen Physiol, 9(6), 835–841.
9. Moore, J.E. & Bertram, C.D. (2018). Lymphatic system flows. Annu Rev Fluid Mech, 50, 459–482.
Mechanotransduction and Guided Morphogenesis
Form follows force at the cellular level
Growth is not random expansion. It is geometry under mechanical constraint. The epiphyseal growth plates of long bones are organized into distinct histological zones — resting, proliferative, hypertrophic, and calcification — each representing a phase in a spatially regulated geometric transformation [10].
Osteoblasts deposit matrix; osteoclasts resorb it. Between them, they sculpt bone architecture through the patient application of mechanical feedback over time. Wolff's Law (1892) states that bone remodels along principal stress trajectories. The trabecular architecture of the proximal femur, for example, aligns precisely with finite-element predictions of load distribution — the body literally builds its own structure according to the forces it experiences [11].
Developmental symmetry emerges from this process. The left femur grows to match the right not through a centralized blueprint, but through a shared mechanical environment producing convergent morphogenetic signals. Symmetry is not imposed from above — it emerges from the geometry of force acting on identical cellular programs [12].
Wolff's Law implies that skeletal architecture is, in effect, a mineralized record of the mechanical forces experienced during development.
References
10. Kronenberg, H.M. (2003). Developmental regulation of the growth plate. Nature, 423(6937), 332–336.
11. Wolff, J. (1892). Das Gesetz der Transformation der Knochen. Hirschwald, Berlin.
12. Frost, H.M. (2003). Bone's mechanostat: a 2003 update. Anat Rec A, 275(2), 1081–1101.
Structural Homology: Architecture and Anatomy
Convergent solutions to shared engineering problems
The Gothic cathedral and the human skeleton solve the same engineering problem: how to enclose maximum volume with minimum material while resisting gravity, wind load, and dynamic forces. The convergence is not metaphorical — it is mechanical [13].
The ribcage functions as a barrel vault. The vertebral column is a curved column — an S-shaped spring that absorbs axial shock and distributes compressive load. The pelvis operates as a flying buttress, transferring the weight of the torso to the lower extremities. Tendons and ligaments function as pre-stressed tension cables, maintaining structural integrity under variable loading conditions [14].
The plantar arches of the foot, the cranial vault, and the thoracic cavity are structural solutions that architects and engineers have independently derived, because the physics of load-bearing admits only certain optimal configurations for a given set of constraints. This is convergent design driven by shared physical law, not analogy [15].
The structural parallels between skeletal anatomy and Gothic architecture reflect convergent engineering solutions, not metaphor.

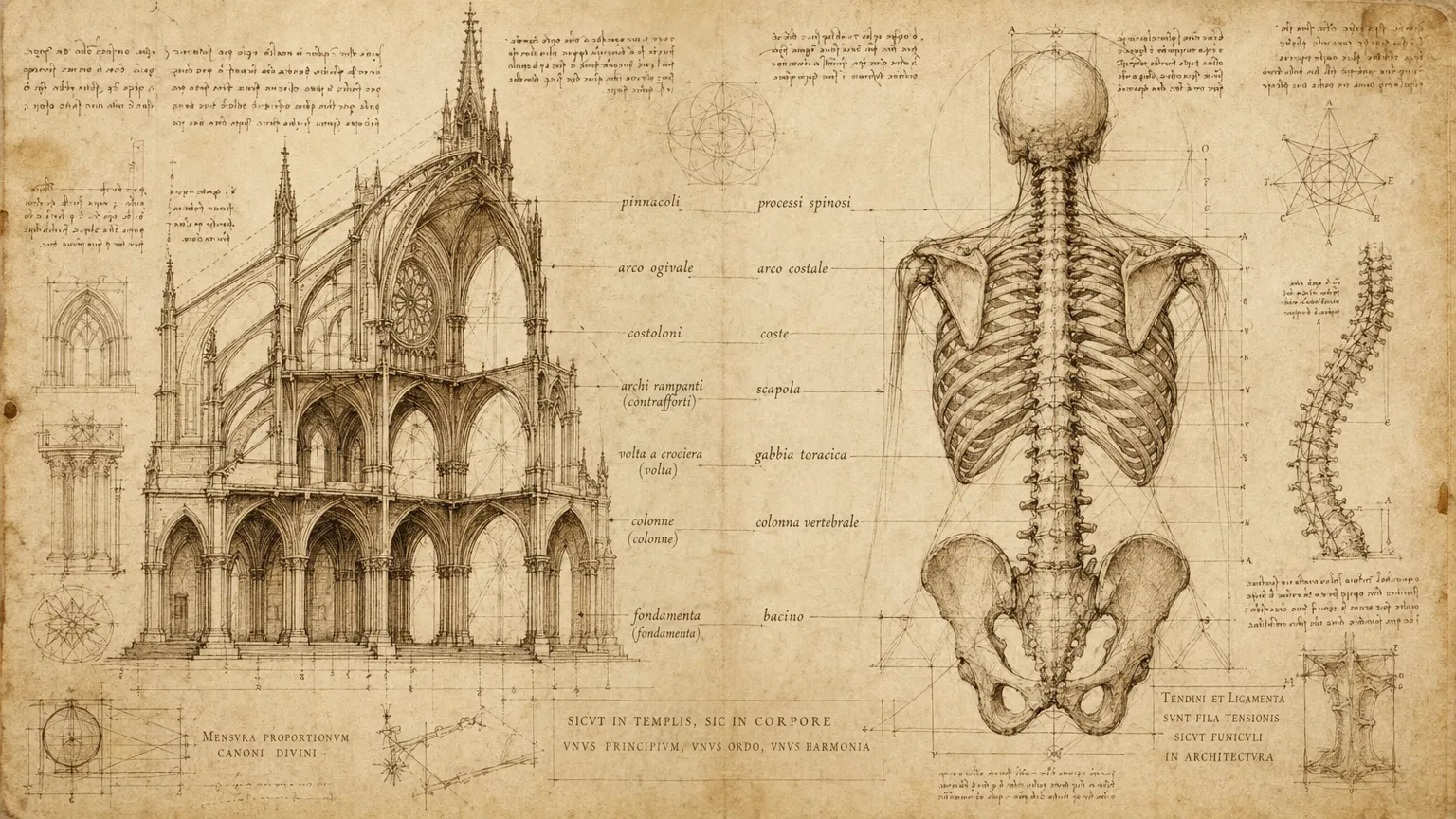

Fig. 5. Structural parallels between Gothic cathedral engineering and the human skeleton. Both systems solve the problem of maximum volume enclosure with minimum material under gravitational and dynamic loading.
References
13. Gordon, J.E. (1978). Structures: Or Why Things Don't Fall Down. Penguin Books.
14. Levin, S.M. (2002). The tensegrity-truss as a model for spine mechanics: biotensegrity. J Mech Med Biol, 2(3–4), 375–388.
15. Mattheck, C. (1998). Design in Nature: Learning from Trees. Springer.
Toward an Integrated Geometric Model
Unifying spiral mechanics, fluid transport, and structural geometry

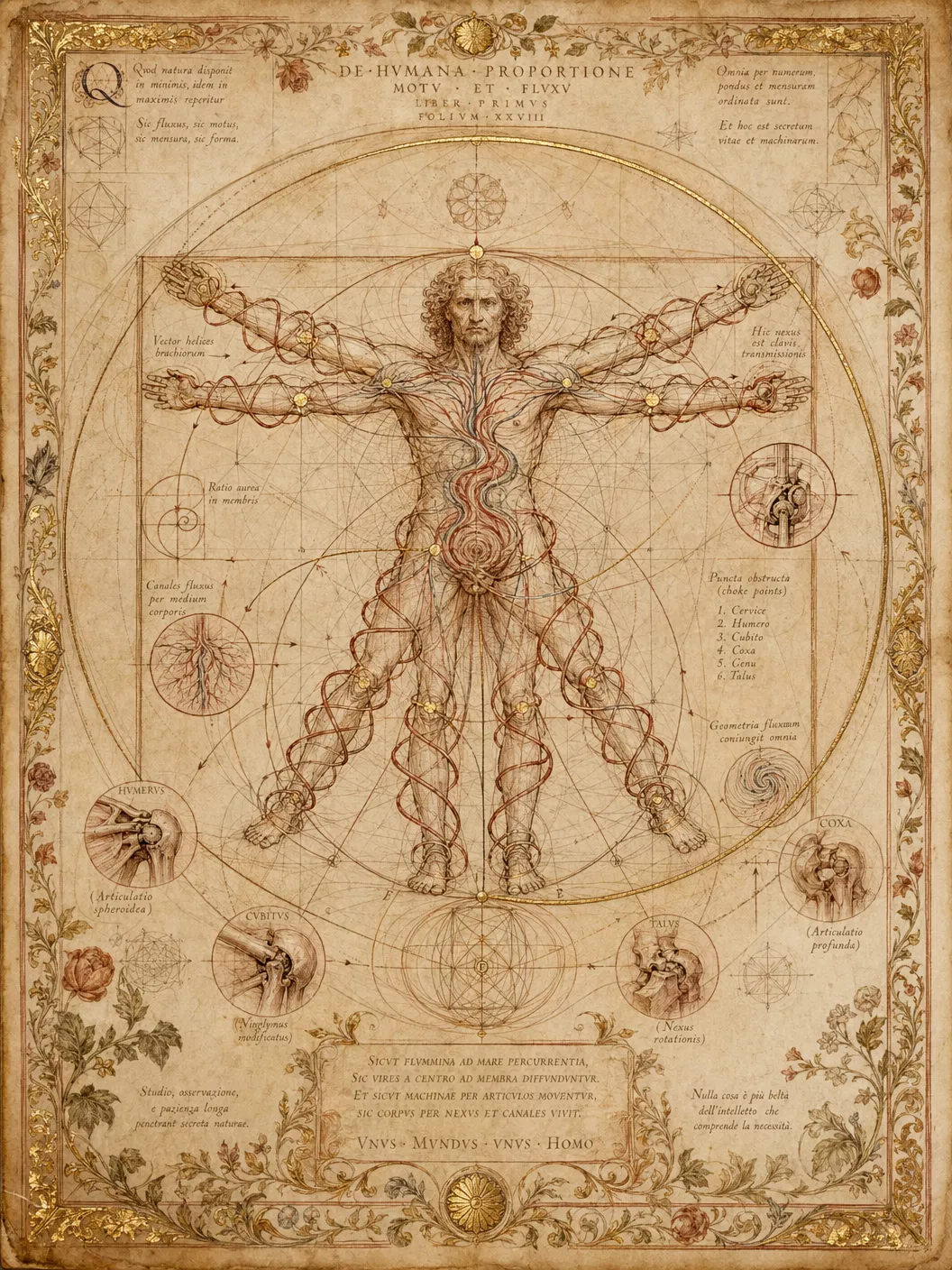

Fig. 6. Proposed integrated model. Spiral force vectors (red), hydraulic transport pathways (blue), and structural geometry fields (gold) are mapped onto the human figure, with critical convergence nodes identified at major joint complexes.
The preceding sections describe three organizational systems — helical mechanics, hydraulic transport, and structural geometry — that are typically studied in isolation. This section proposes that they constitute a single integrated system, with predictable convergence points at major anatomical junctions [16].
At each major joint complex — shoulder, elbow, wrist, hip, knee, ankle — the three systems converge. Spiral muscle vectors cross hydraulic transport channels at structural load-bearing nodes. These convergence points represent sites of extraordinary mechanical and physiological complexity, and may explain why joint pathology is disproportionately common relative to mid-shaft or mid-segment disease [17].
The classical Vitruvian figure maps proportional geometry. The model proposed here extends that framework to include functional geometry — the spatial organization of force, flow, and structure. The body is not merely proportioned by these relationships. It is organized by them [18].
Joint complexes may represent critical convergence nodes where mechanical, hydraulic, and structural systems interact — a testable hypothesis.
References
16. Ingber, D.E. (2003). Tensegrity I. Cell structure and hierarchical systems biology. J Cell Sci, 116(7), 1157–1173.
17. Schleip, R. et al. (2012). Fascia: The Tensional Network of the Human Body. Churchill Livingstone.
18. Levin, S.M. (2006). Tensegrity: the new biomechanics. In: Hutson, M., Ellis, R. (eds) Textbook of Musculoskeletal Medicine. Oxford University Press.
Methodology and Presentation
A note on the format of this monograph
This digital monograph presents a synthesis of observations drawn from comparative anatomy, biomechanics, fluid dynamics, and structural engineering. The format — a scrolling, illustrated digital document — was chosen to allow integrated presentation of text, figures, and spatial relationships that are difficult to convey in traditional print formats.
The illustrations are interpretive reconstructions informed by anatomical reference, not direct reproductions of clinical imaging. They are intended to communicate structural and functional relationships at a conceptual level, in the tradition of scientific illustration from Vesalius through Netter.
The hypotheses presented here — particularly the integrated convergence model of Section 6 — are offered as a framework for further investigation, not as established conclusions. The author invites critique, collaboration, and empirical testing of these propositions.
References
Vesalius, A. (1543). De Humani Corporis Fabrica. Basel.
Netter, F.H. (2014). Atlas of Human Anatomy, 6th ed. Elsevier.
Conclusion
Form is constrained by physics.
Organization emerges from flow.
The body is an integrated geometric system.
The human body is not a machine to be repaired by replacing parts. It is not a static structure to be catalogued by region. It is a dynamic, integrated system — organized by spiral mechanics, hydraulic transport, and structural geometry — governed by physical principles that operate across scales from the molecular to the whole organism.
This monograph proposes that these three systems are not independent. They converge at predictable anatomical nodes, and their interaction may explain patterns of pathology, adaptation, and performance that current disciplinary silos fail to account for. The hypothesis is testable. The framework is falsifiable. The inquiry is open.
Jeffrey D. Smith
The Vitruvian Flow
2026
